Triple Exhaust Systems

Stock OEM Systems

This section is for info only since these systems are no longer available or in production.

They occasionally show up on internet auction sites, salvage yards and for trade.

Some fabricators reproduce these in stainless steel.

There were only 3 different stock OEM exhaust systems available on the US versions of the Yamaha triples.

The 1980 European XS850 had a unique exhaust system.

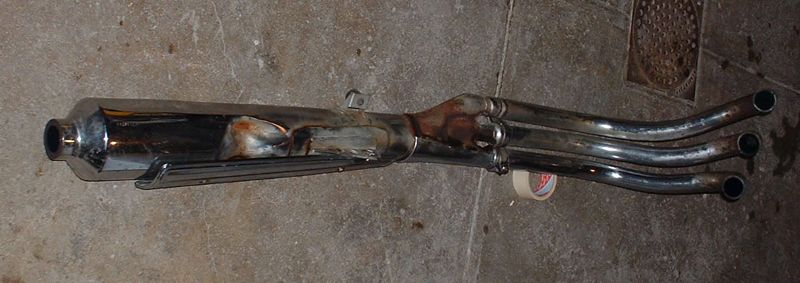

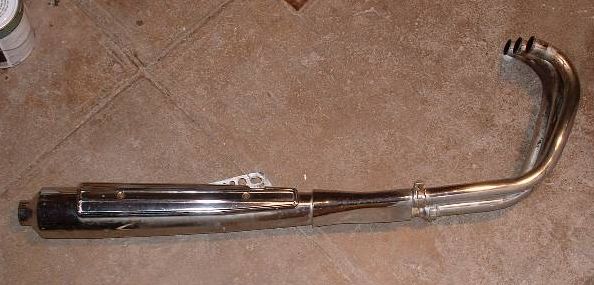

3 into 1

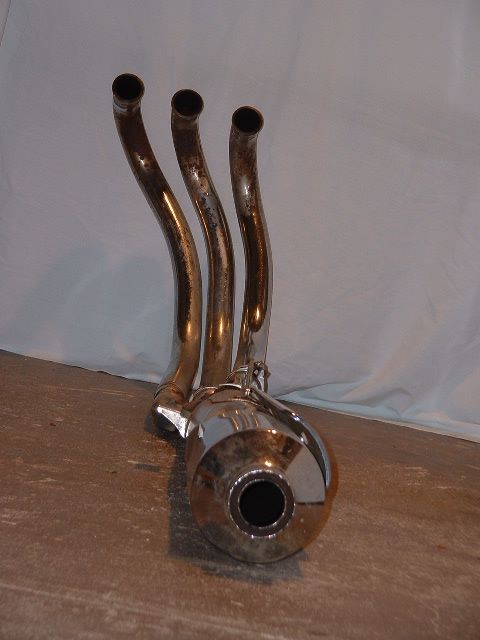

The 3-1 system was only installed on the first triple, the 1976 XS750D

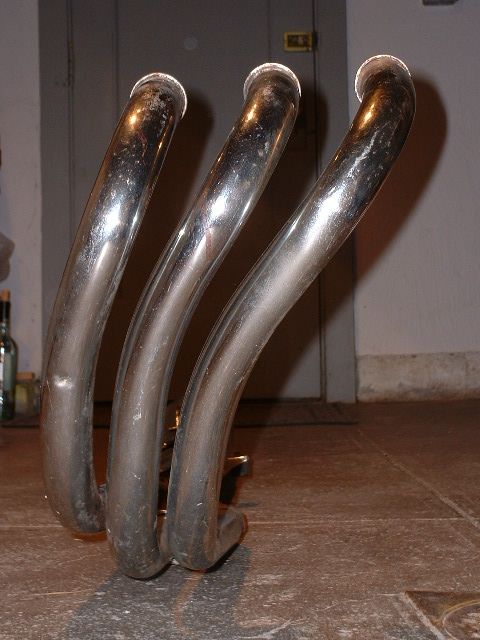

Notice the graceful curves of the header pipes

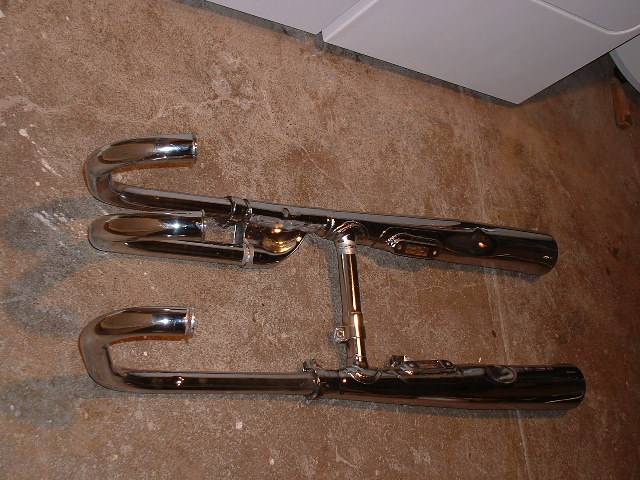

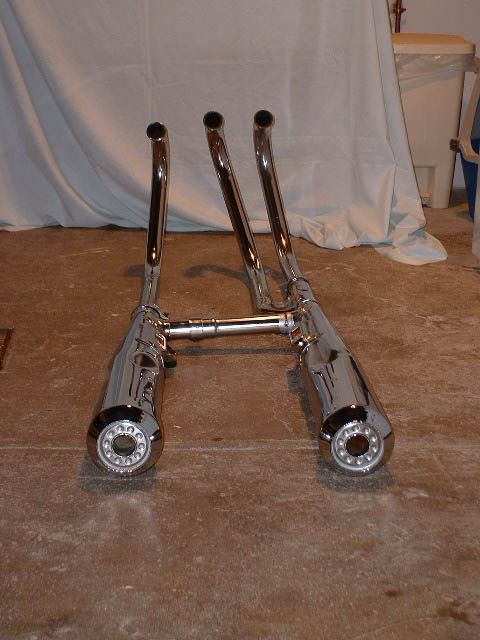

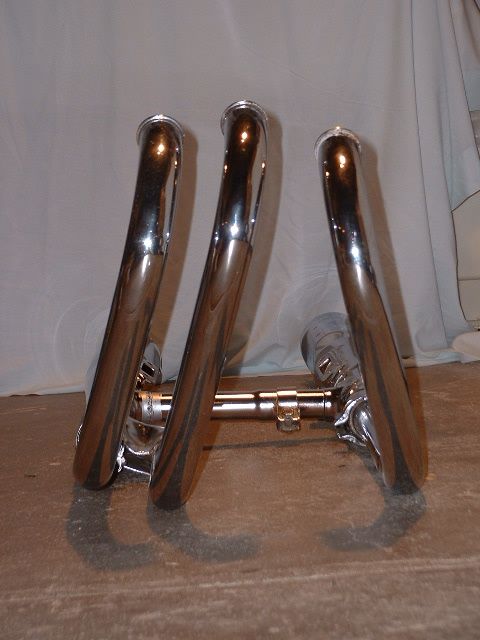

3 into 2 Standard

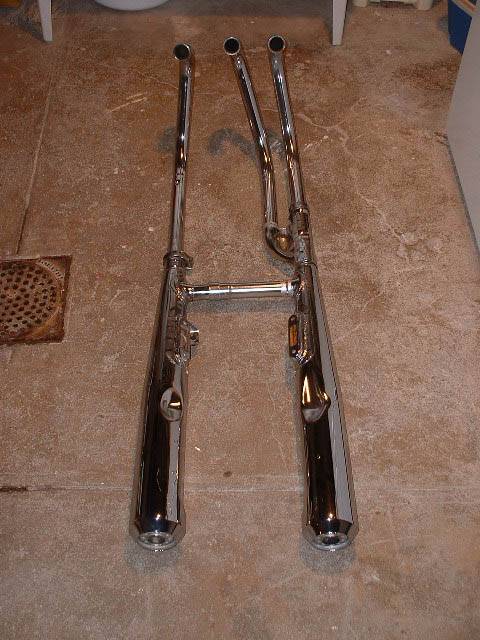

This is the 3-2 system that was on all the Standards, from the 1977 XS750-2D and later



The cross over pipe is necessary to balance out the exhaust pulses on the 3-2

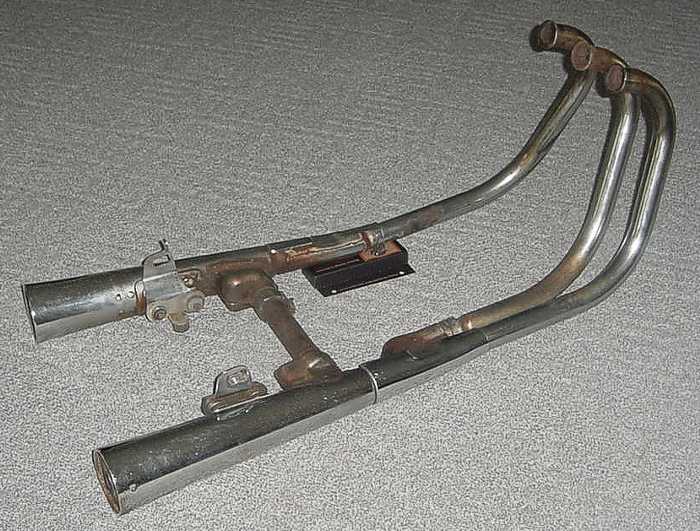

3 into 2 Special

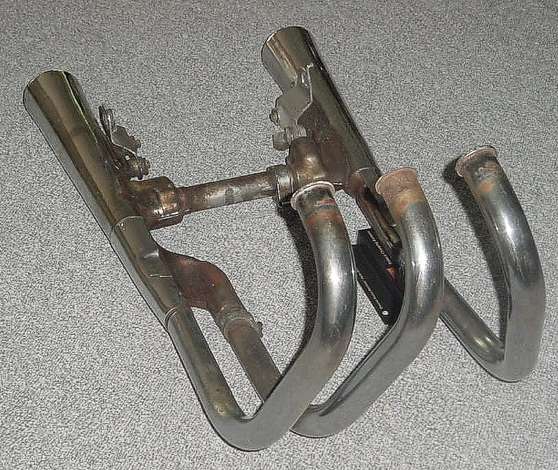

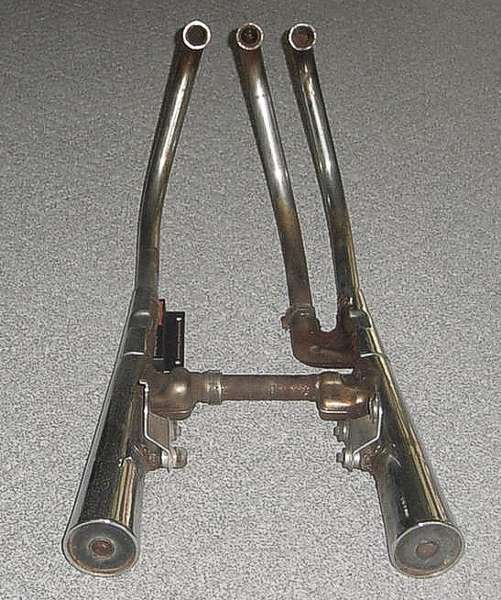

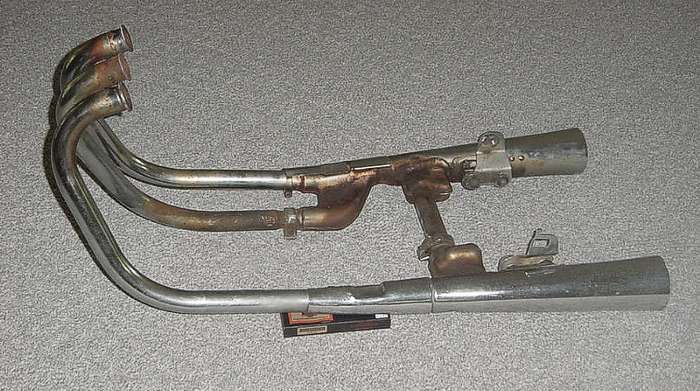

The 3-2 system used on the Specials was available on the 1978 750SE to the 1981 850SH model.

It is similar to the Standard, the primary difference is the shorter, cut off mufflers.

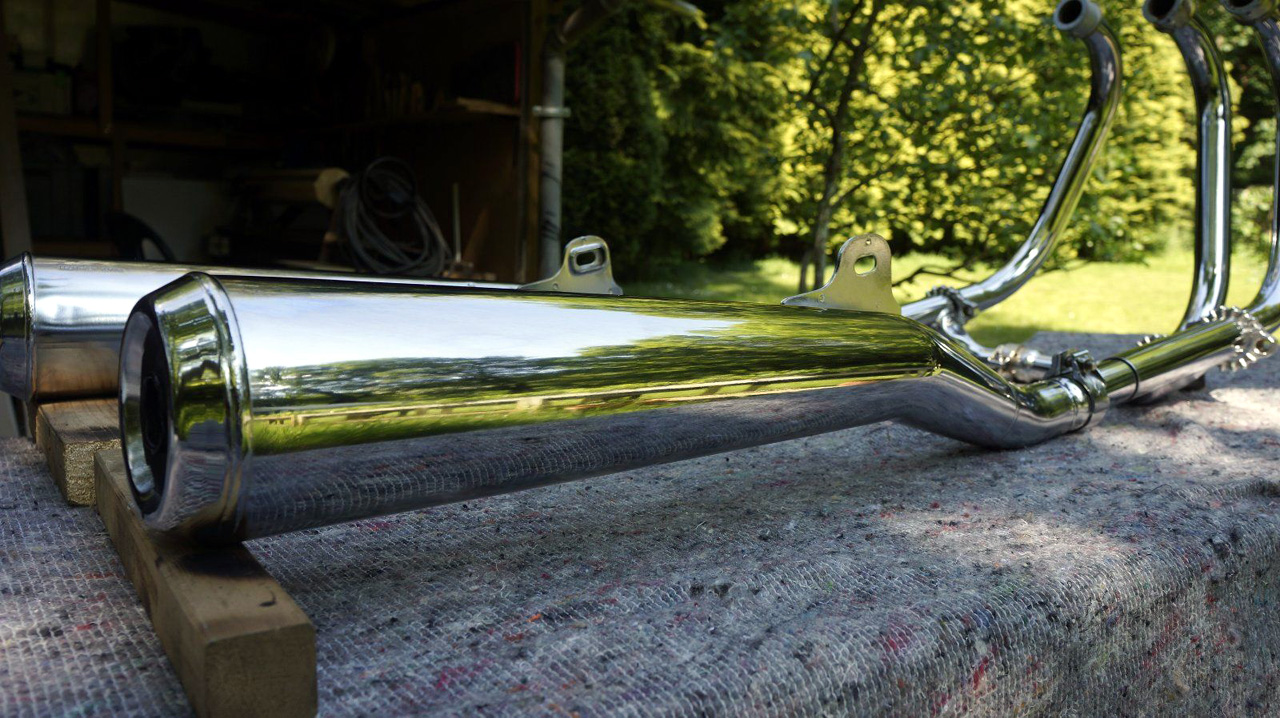

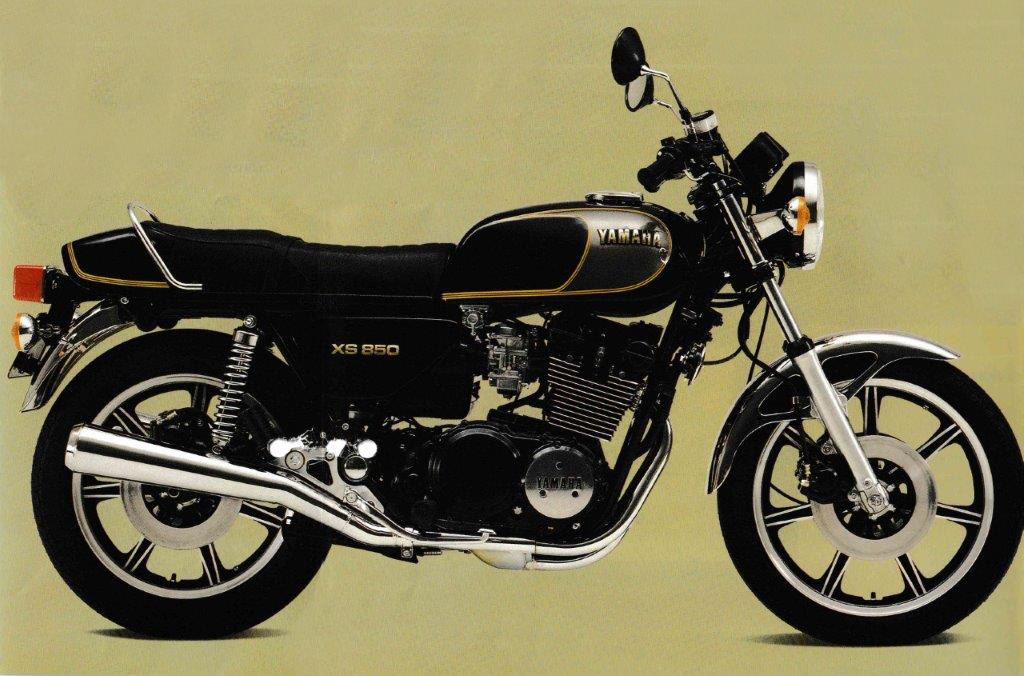

3 into 2 XS850 European model

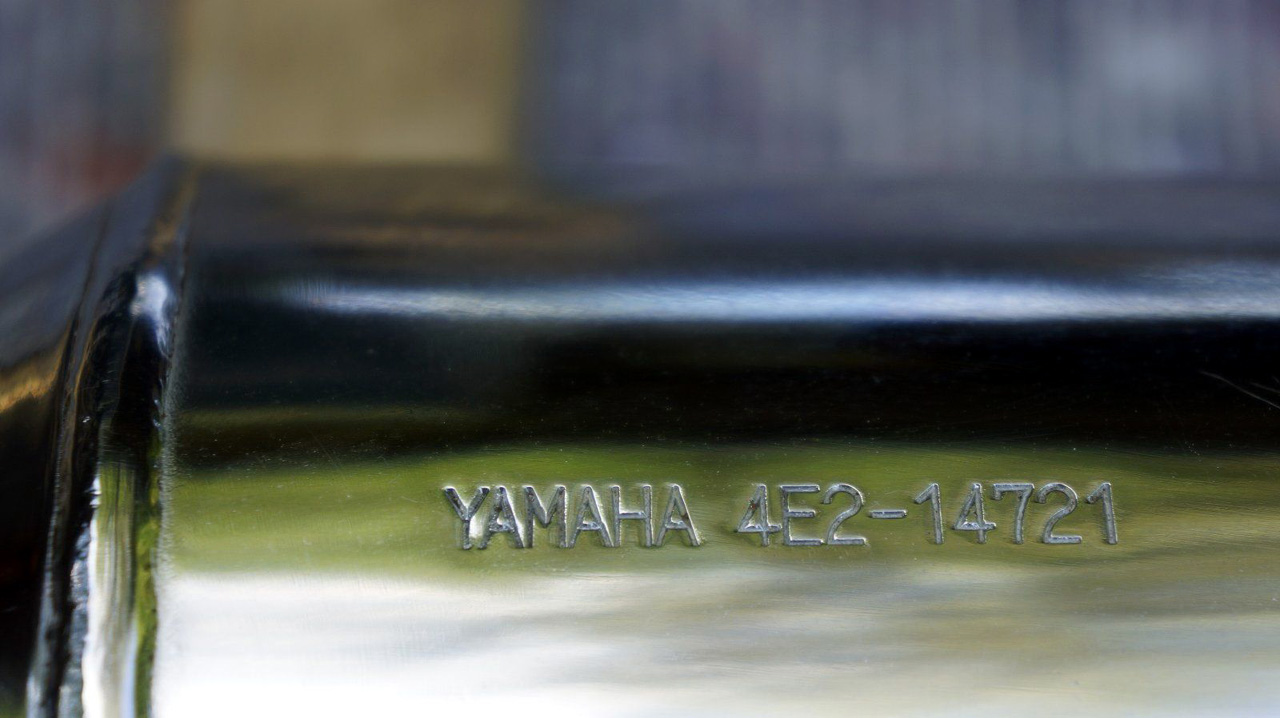

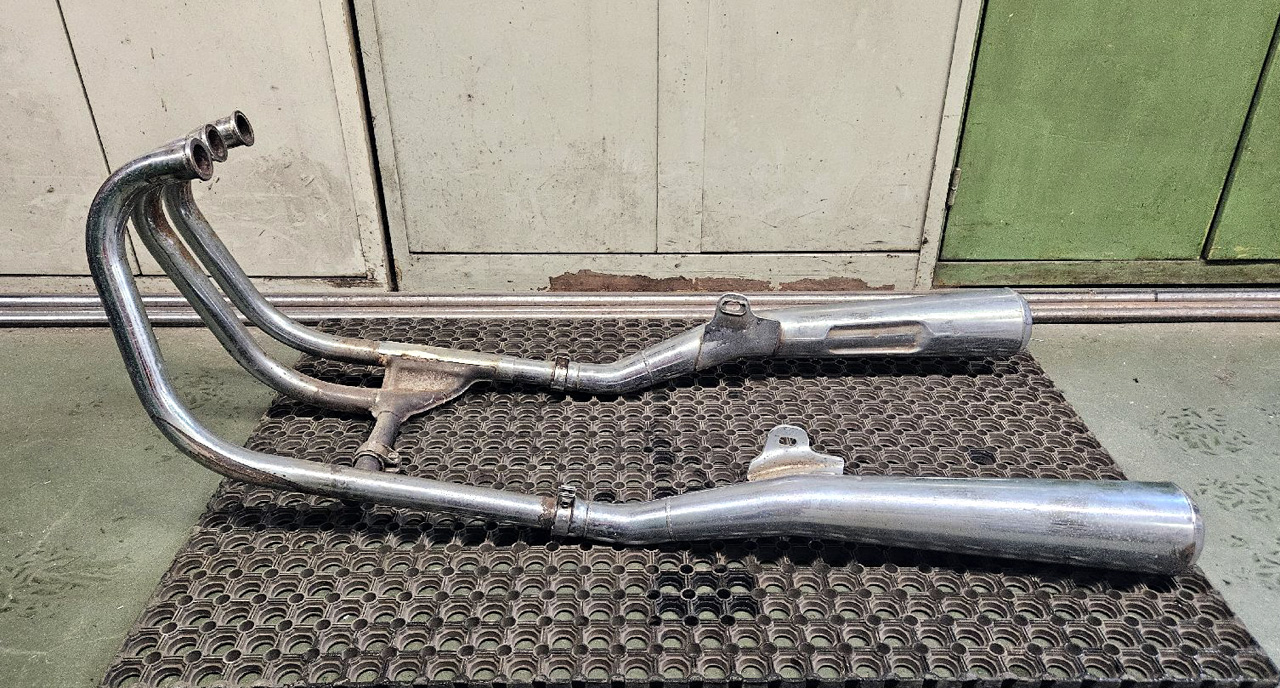

This 3-2 system was only available on the 1980 XS-850 European models
